CNC Turning Services & Turn-Mill Machining

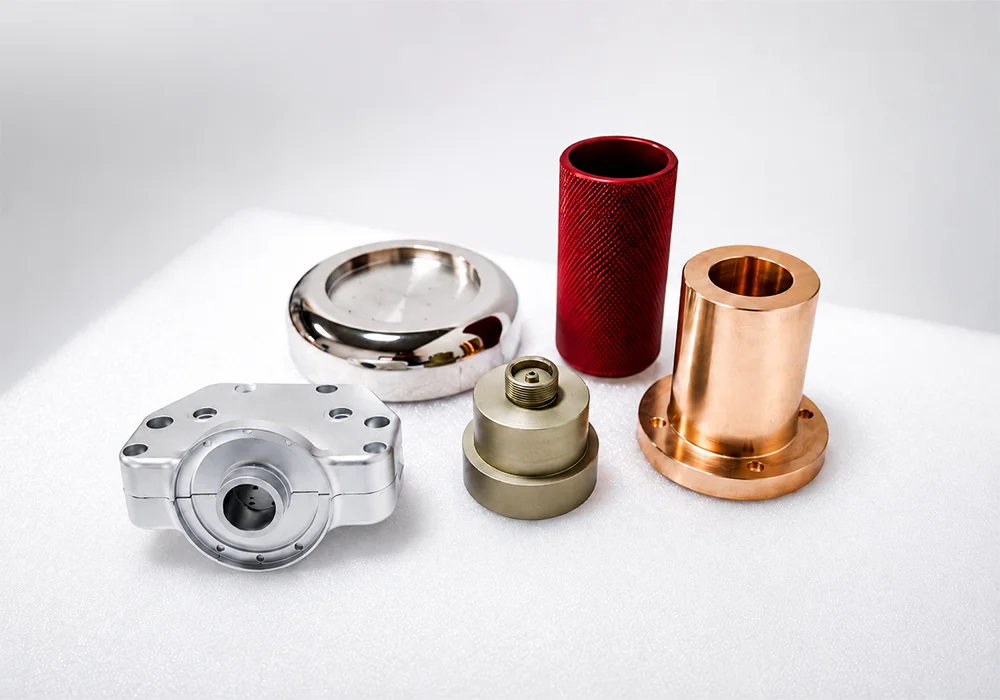

Custom shafts, bushings, sleeves and threaded parts, from one piece to repeat production. We review critical fits, material and inspection requirements with your drawing.

Black cylindrical machined component with a central bore, circular hole patterns and side pockets
Custom rotational component

Central bore, circular hole patterns and machined side features.

Turning processes and working limits

Send the complete drawing; you do not need to choose the machine. We review the turned features, any milling operations and how the part will be held and measured.

01

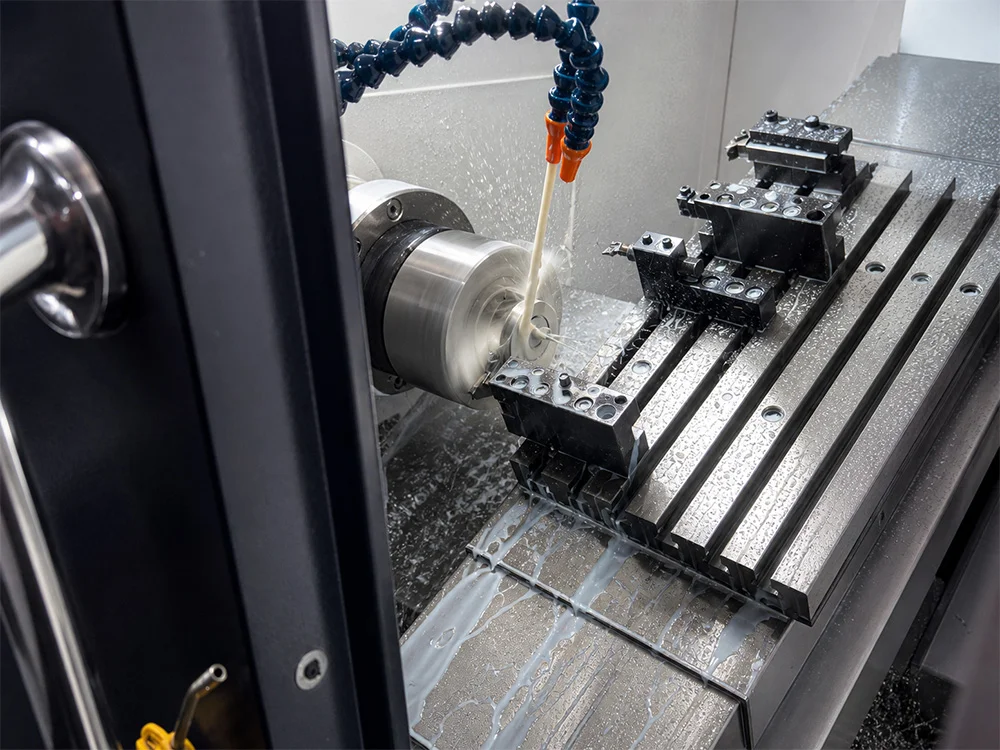

CNC turning

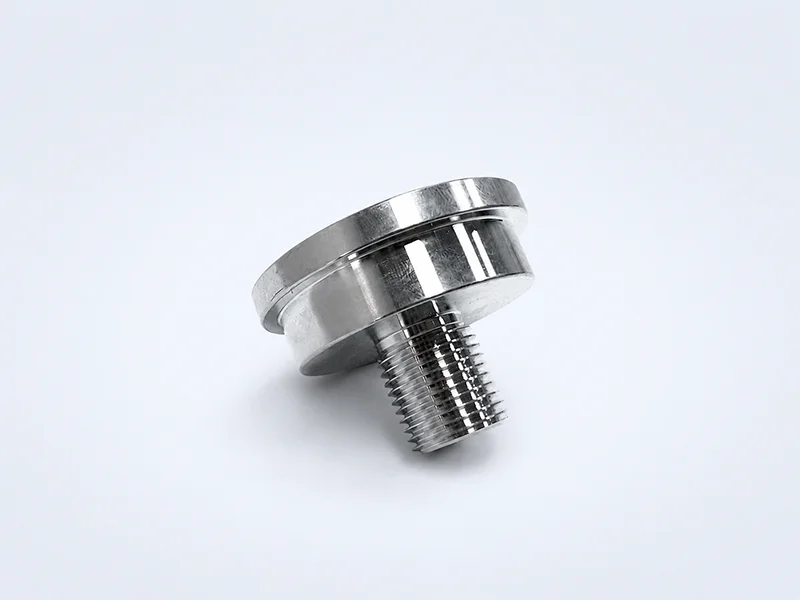

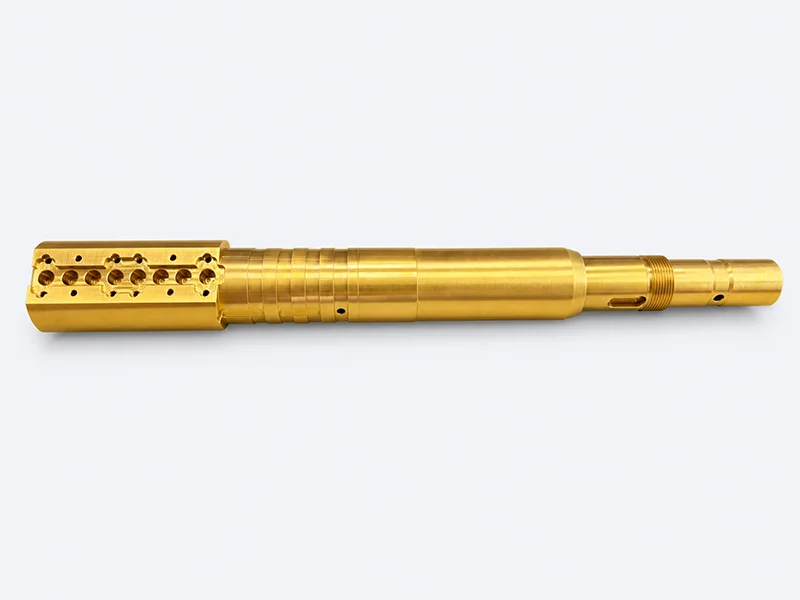

Shafts, sleeves, bushings and threaded parts with diameters, bores, grooves and faces arranged around a common axis.

Identify mating diameters, thread specifications and surface finish on the drawing.

02

Turning with milled features

Rotational parts with flats, cross-holes, slots or off-axis features. We review turn-mill and separate turning / milling setups around the datum relationships.

Send the complete part model so features on every face are included.

03

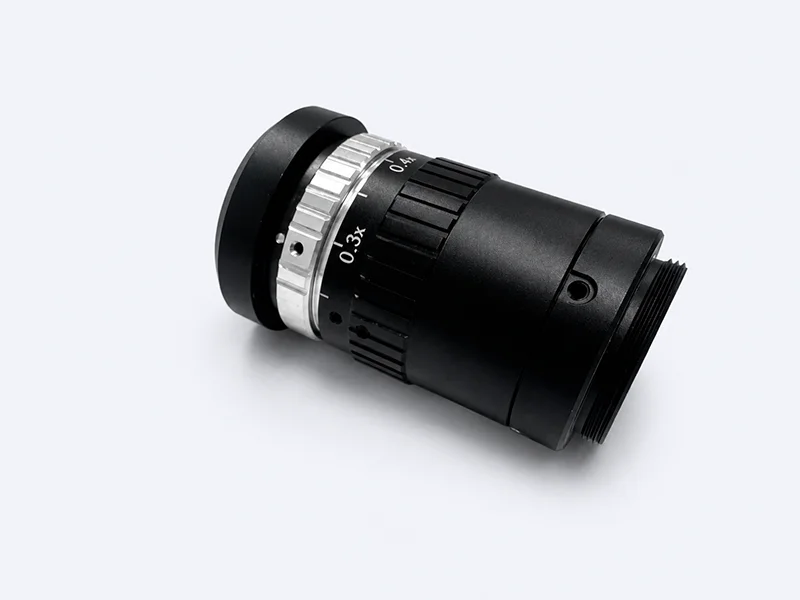

Swiss-type & small parts

Small-diameter pins, shafts and slender components have a separate Swiss-type machining route and equipment lineup.

See the dedicated small-part capability.

Swiss & micro machining →
10CNC lathes
3Turn-mill machines

Part size is confirmed at engineering review; recorded envelopes include Ø350 × 400 mm (Tongtai) and Ø300 × 500 mm (Longbang) on different machines. These limits cannot be combined.

View CNC turning equipment and recorded machine limits

Machine specifications describe the equipment. Workholding, tool access, material and inspection requirements determine the usable part envelope and achievable tolerances.

OUJI CNC turning equipment records
Machine / brandTypeQuantityRecorded diameter × lengthPositioning accuracyListed machine accuracy
Hardinge EU51CNC lathe1Ø320 × 350 mm0.003 mm0.005 mm
Mazak QT100LCNC lathe1Ø320 × 300 mm0.005 mm0.008 mm
Mazak QTE200LCNC lathe2Ø300 × 300 mm0.005 mm0.008 mm
ShenyangCNC lathe2Ø320 × 350 mm0.01 mm0.02 mm
FeelerCNC lathe1Ø300 × 350 mm0.01 mm0.02 mm
TongtaiCNC lathe1Ø350 × 400 mm0.008 mm0.02 mm
LongbangCNC lathe2Ø300 × 500 mm0.005 mm0.008 mm
HongxuanTurn-mill1Ø260 × 350 mm0.01 mm0.01 mm
LongbangTurn-mill2Ø300 × 500 mm0.005 mm0.008 mm
CNC turning workshop with an operator beside a lathe, a marked blue aisle and racks of parts awaiting machining

ON THE SHOP FLOOR

Inside the turning workshop

CNC lathes, an operator at the workstation and a marked staging area for parts awaiting machining.

See turned-part case studies

FROM OUJI PRODUCTION

Turned parts and production records

These production records connect turning requirements with project-specific processes and evidence.

Two 6063 aluminum ball-head screws showing spherical heads, wrench flats and M4 external threads

BALL-HEAD SCREW · 6063 ALUMINUM

6063 aluminum ball heads: 100,000 parts per month

Tool, program and feed optimization followed by walnut-media polishing established the production route. Photographed ball-diameter checks read 5.980 mm and 5.974 mm.

Drawing requirements & evidence scope

Ball diameter 5.970–6.000 mm, with a smooth surface free from scratches, steps and dents.

The photographs record individual diameter checks; monthly project volume is confirmed by OUJI.

Read the production case →
Finished high-strength brass robot joint bushing with black graphite lubrication inserts machined flush with the bearing surfaces

ROBOT JOINT · HIGH-STRENGTH BRASS

A brass bushing, finished after graphite insertion

The published micrometer check reads 15.992 mm on the outside diameter. Graphite insertion was completed by a specialist partner; OUJI performed the initial and final turning.

Drawing requirements & evidence scope

Ø16 h7 OD, Ø8 H7 bore and 0.01 mm geometric controls on the drawing.

The displayed OD check does not verify every drawing characteristic.

Read the production case →
Front face of a finished 7075-T6 aluminum second-stage planet carrier for an industrial robot reduction gearbox

PLANET CARRIER · 7075-T6 ALUMINUM

Turning and milling a 3,300-part gearbox order

Soft-jaw turning, a dedicated 12-position milling fixture and ZEISS CMM inspection formed the production route.

Drawing requirements & evidence scope

Datum-related fits and 0.01–0.02 mm geometric controls across turned and milled features.

This is a combined turning and milling case, not evidence of a single-setup turn-mill operation.

Read the production case →

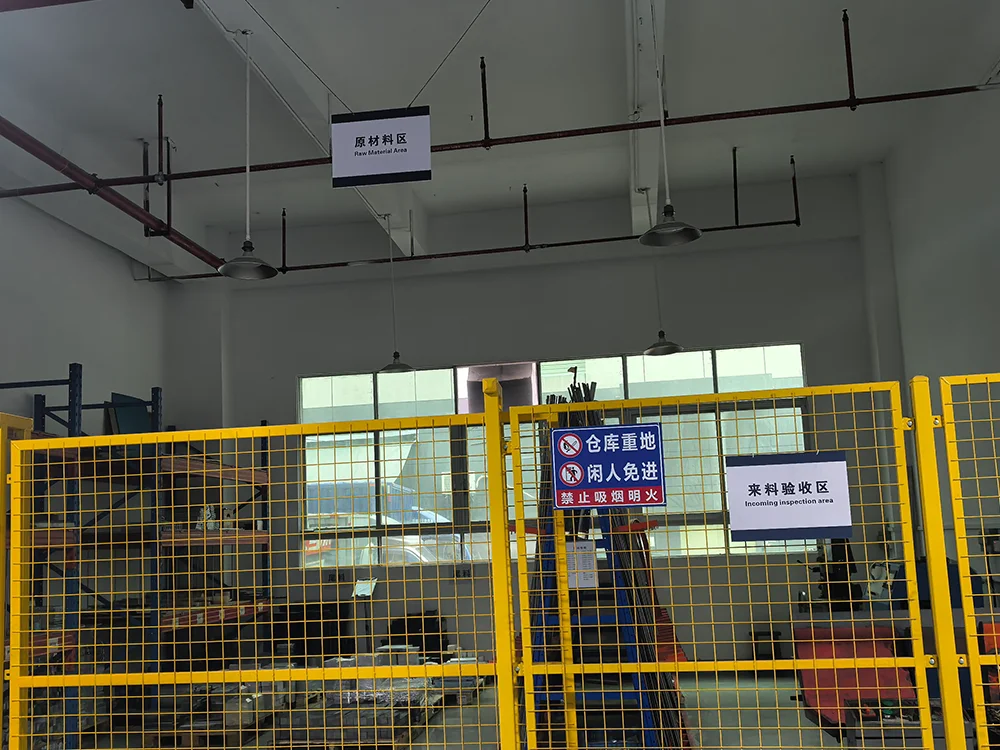

Materials and finishing for turned parts

The grade and condition matter as much as the material family. Include heat treatment, coating and final fit requirements so the quotation covers the finished component.

Turning material selection and quotation requirements
Material familyMaterial scopeWhat to specify
Aluminum6061, 6063, 7075; see the 6063 ball-head and 7075-T6 planet-carrier cases.State the temper, mating fits and any anodizing allowance.
Steel & stainless steelMaterial grade and heat-treatment condition determine the route.Identify hardness, corrosion requirements and dimensions to finish after treatment.
Brass & copper alloysThe published robot-joint bushing uses ZCuZn25Al6Fe3Mn3 high-strength brass.Specify the alloy; a bearing brass is not interchangeable with a free-cutting brass.
Engineering plastics & other metalsSuitability is reviewed against the drawing and application.Include operating temperature, fit requirements and any restrictions on substitution.

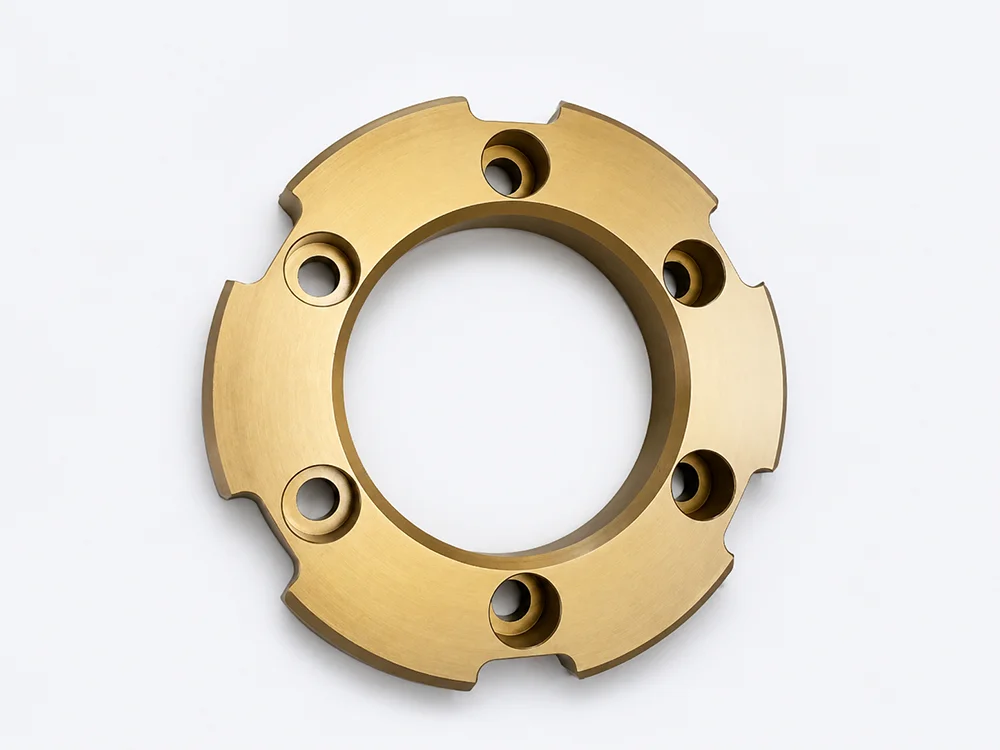

Protect the final fit

Mark dimensions that apply after plating, anodizing or heat treatment. Identify surfaces to mask and any grinding or final turning needed after treatment.

SUS431 case: precision grinding and 100% bore inspection →

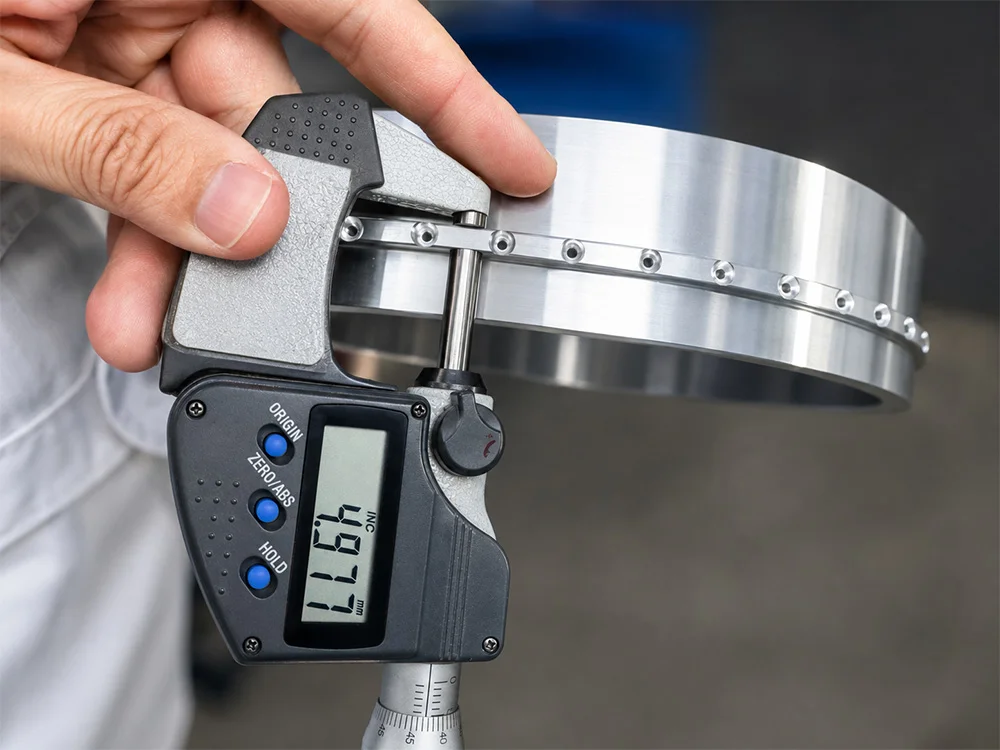

Inspection of diameters and fits

Define acceptance requirements before production. Critical diameters, bore fits and datum-related features need an agreed measurement method and report scope.

01

Diameters, bores & threads

Identify mating fits, thread standards, engagement lengths and surface roughness. Mark dimensions that apply to the finished, treated part.

02

Runout & datum relationships

Show how turned surfaces relate to the axis and to later milled features. Datum references guide setup planning and inspection.

03

Reports agreed with your order

Dimensional, CMM and first article reports can be arranged to the agreed scope. Request material certificates and batch traceability during quotation.

Quality assurance & documentation →
Industrial borescope inspecting the internal bore of a SUS431 part, with the bore view visible on its screen
SUS431 shafts · 100% internal-bore inspection

Every part in this 2,000-piece turning and grinding order was inspected with a borescope after internal deburring.

View the case and 8.003 mm OD check →

OUJI's inspection equipment includes ZEISS CMM, TESA height gauge and Mitutoyo roughness tester.

YOUR NEXT TURNED PART

Drawing review for turned parts

Share the part requirements and quantity for engineering and quotation review. Still working through a fit, material or production question? Start a conversation with project support.

Discuss your project first →

01 / Part files

3D model and dimensioned drawing, with the current revision. Include threads, datums and critical fits.

02 / Order requirements

Quantity, material grade and condition, finishing, and required delivery date. Include expected repeat quantities if known.

03 / Acceptance documents

Tell us whether you need first article approval, dimensional reports, material certificates or full-dimensional inspection.

What happens next?

The drawing and process review establishes machining scope, inspection requirements, price and delivery. Open technical points are resolved before production.

Questions about CNC turning

Tolerances, batch consistency, thread inspection and the records available with your turned parts.

OUJI has machined stainless steel, aluminum alloys and titanium alloys with total dimensional tolerance widths as narrow as 0.005 mm on selected features. For engineering plastics, a total tolerance width of 0.03 mm is achievable depending on part geometry. We use internal and external micrometers for diameters and dial indicators for runout. Pricing, special tolerances and the machining process require drawing review; complex parts also require a 3D model.
